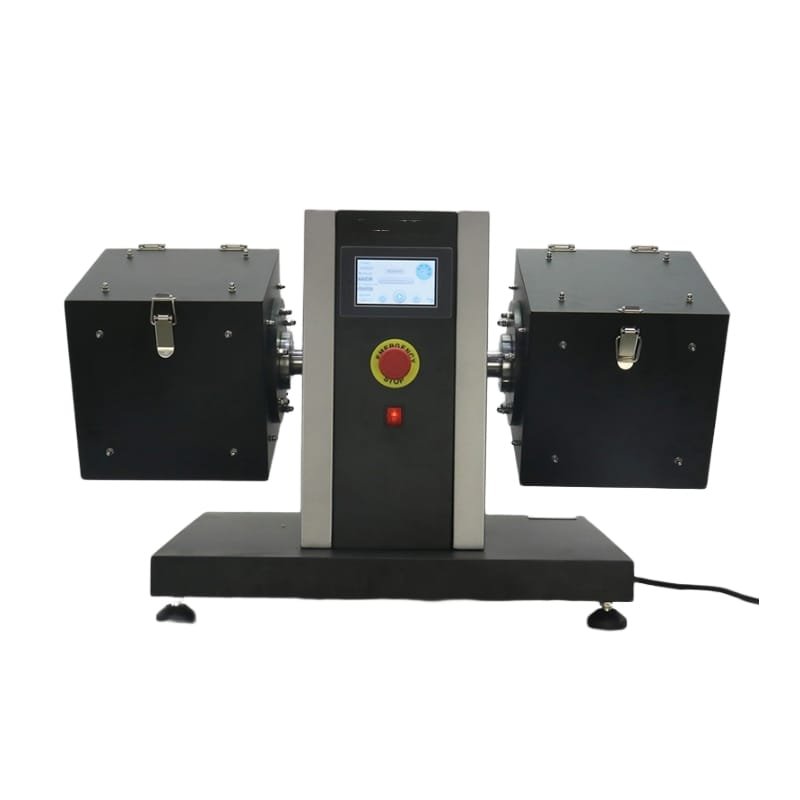

ICI PILLING TESTER
The ICI Pilling Tester is a specialized textile testing instrument used to assess the pilling resistance of fabrics due to friction and wear. It simulates real-world conditions where fabric surfaces rub against each other, leading to the formation of pills (small fiber balls). This tester ensures that textiles meet quality standards for durability and appearance retention.
Product Information
➢ ICI Pilling Tester – ICI Pilling Tester is used to assess fabric surface pilling and fuzzing by tumbling randomly. This pilling test machine is also called as ICI pilling and snagging tester/ICI pilling box.
➢ ICI pillbox to rapidly replicate pilling on fabrics. Motorized operation with pre programmable counter, counting up to 999999 strokes.

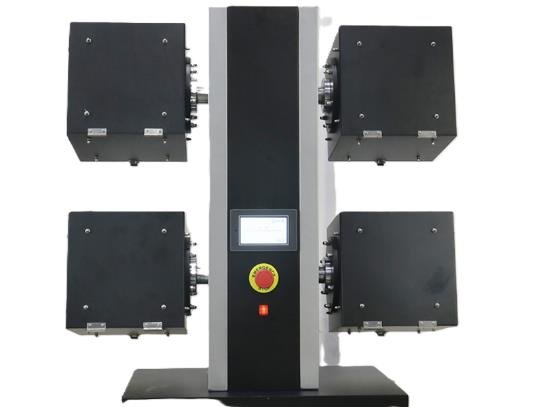

➢ Instrument available with 2 or 4 boxes model.
➢ The boxes are rotated about their central axis as per standard conditions.
➢ Inside, size of each box is (235 X 235 X 235) mm without cork lining thickness of 3.2 mm.
➢ ICI pilling box test method includes ISO 12945.1, BS 5811, GB/T 4802.3, JIS L1076, etc.
Products Components

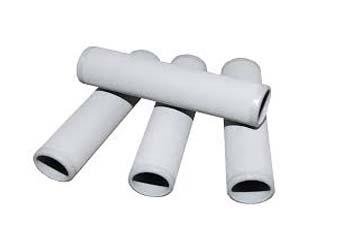

Polyurethane Tube
Box Dimensions: 235×235×235

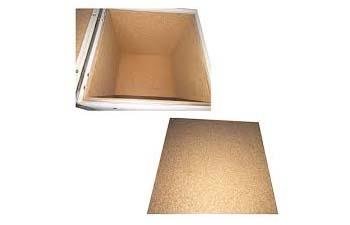

Cork lining thickness of 3.2 mm

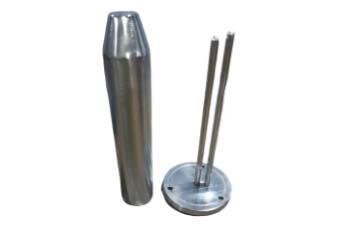

Sample Holding Mound

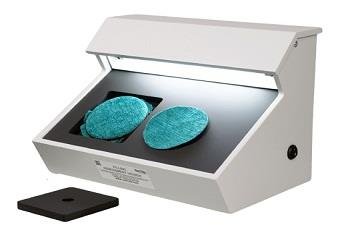

Piling Viewer
➢ PAV has been developed to adhere to all three parts of
BN EN ISO 12945 standards and is ideal for assessing pilling on fabrics and garments.
